5-FD90-EBE
COMMERCIAL AND ARCHITECTURAL DOORS
5-FD90-EBE
FSC Certified
No urea formaldehyde
Download the technical sheet (PDF)
Technical sheet
Last update : 18 December 2024

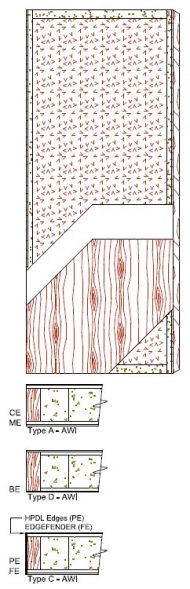

Edge finishing
Blind edge
In conformity with industry standards
WDMA Series I.S. 1-A-2021
NAAWS 4.0
ARCHITECTURAL WOODWORK STANDARDS - ED.2
Fire Rating Details
90 minutes neutral or positive pressure.
60 minute neutral or positive pressure.
UL 10C Positive pressure Category A in option
UL 10C Positive pressure Category B
UL 10B Neutral pressure
NFPA 252
CAN/ULC-S104
Thickness
1-3/4″ (44 mm) to 2-1/4″ (57 mm).
Maximum size
Neutral and Positive Pressure: 48 in x 108 in (1219 mm x 2743 mm )
Stiles
BE (Blind Edge): 7/16" (11 mm) hardwood. Laminated to 1" (25 mm) of proprietary material (FPCM*).
Rails
1-1/2" (38 mm) of proprietary material (FPCM*).
Core
Non-combustible mineral core bonded to the stiles and rails.
Adhesive
Type I (Waterproof); PVA (UF-Free).
Face
Wood veneer, MDO or HPDL laminated to a HDF.
Options
EPE (Plastic Edge): HPDL edges.
Lambton Doors' EDGEFENDER: High impact resistant edges.
Blocking for hardware.
Lite and louver opening
Cut-out for lites and louvers available with size limitations.
Notes
Thickness 44 mm (1-3/4") : 5.8 lb/ft2.
Stile and rail dimensions shown are rough sizes, before trimming.
Warranty
Life of original installation. See our complete warranty for details.
Factory finish
UV Finishing System 9 by AWI. Stain, clearcoat, opaque and primed finish available. Custom color matching available. No VOC. Sealed top and bottom standard. Lambton Doors' ASEPTI: Antimicrobial coated surface in option.
Environmental benefits
Low Emitting Materials, NAF/ULEF. Specify NAF.
EPD : Environmental Product Declaration available. HPD : Health Product Declaration available.
Regional Materials. According to jobsite location.
FSC Certified wood. Specify FSC.
Recycled content. All series.
