5-STC45-ECE
COMMERCIAL AND ARCHITECTURAL DOORS
Acoustical Door
FSC Certified
No urea formaldehyde
Download the technical sheet (PDF)
Technical sheet
Last update : 6 June 2016
Edge finishing
Compatible edge
Type
Sound dampening core (interior use).
In conformity with industry standards
W.D.M.A. SERIES I.S.1-A-2013
C.S.A. 0132.2 Serie 90
ASTM E2335-04
ASTM E90-04
ASTM E413-04
ASTM E1332-90
ASTM D5456-09
ARCHITECTURAL WOODWORK STANDARDS - ED.2
Thickness
1-3/4" (44 mm).
Maximum size
48" x 120" (1 219 mm x 3 048 mm).

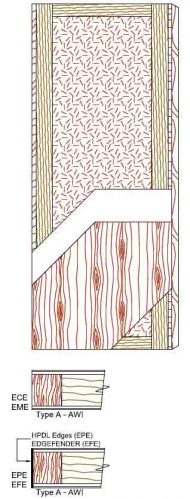

Stiles
ECE (Compatible Edge): 15/16 in (24 mm) wood (mill option). Laminated to 4 in (102 mm) Structural Composite Lumber (SCL).
Rails
3 in (76 mm) Structural Composite Lumber (SCL).
Core
Proprietary material.
Adhesive
Type I, fully waterproof;
PVA (no urea formaldehyde);
VOC < 0,683 g/L.
Face
Wood veneer or MDO bonded to a UF free composite crossband.
No added urea formaldehyde resin.
Acoustical rating
STC45. For pair and transom, the STC rating will be affected.
Options
EPE (Plastic Edge): HPDL edges.
Lambton Doors' EDGEFENDER: High impact resistant edges.
Lite opening
Limited to 1,296 in2 (0,836 m2). Will affect STC rating.
Notes
The use of hardware other than those tested will affect STC rating.
Not available with fire rating.
Stile and rail dimensions shown are rough sizes, before trimming. Dimensions will vary depending on the hardware.
For pair and transom, Lambton Doors will provide a wood astragal with S88BL SiliconSeal™ gasket.
Door tested using 'Zero International Hardware. 1 row of Weatherstrip #475 on doorstops; Specify finish: 'AA': Clear Anodized (in stock). 'D': Dark Bronze Anodized. 'G': Gold Anodized. / 1 Rabetted Threshold #564A. Specify finish: 'A': Aluminum (in stock). 'B': Bronze. 'D': Dark Bronze Anodized. / 1 row of Spring #119WB on head and jambs and bottom rail of the door. Specify finish: 'B' Brass (in stock). 'S': Stainless Steel.
Heavy duty hinges must be used. Weight : 11.2 lbs/sq. ft. (54.6 kg/sq. m.).
Warranty
Life of original installation. See our complete warranty for details.
Factory finish
UV Finishing System 9 by AWI. Stain, clearcoat, opaque and primed finish available. Custom color matching available. No VOC. Sealed top and bottom standard. Lambton Doors' ASEPTI: Antimicrobial coated surface in option.
Environmental benefits
MRc4.1, 4.2: Recycled content.
MRc7: FSC Certified Wood available on request.
IEQ4.4 : Low Emitting Materials. UF-Free.
